Radio specification

• AP type: Indoor, dual radio, 5 GHz 802.11ax 4x4:4 and 2.4 GHz 802.11ax 2x2:2
• 5 GHz: Four spatial stream DL/UL MU- MIMO for up to 2.402 Gb/s wireless data rate
• 2.4 GHz: Two spatial stream DL/UL MU- MIMO for up to 573.5 Mb/s wireless data rate
• Supported frequency bands (country-specific restrictions apply):

¬ 2.400 to 2.4835 GHz

¬ 5.150 to 5.250 GHz

¬ 5.250 to 5.350 GHz

¬ 5.470 to 5.725 GHz

¬ 5.725 to 5.850 GHz

• Available channels: Dependent on configured regulatory domain
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mbps):

¬ 802.11b: 1, 2, 5.5, 11

¬ 802.11a/g: 6, 9, 12, 18, 24,36,48,54

¬ 802.11n(2.4GHz):6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

¬ 802.11n(5G):6.5 to 600 (MCS0 to MCS31, HT20 to HT40)

¬ 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80), 2166 with 1024-QAM

¬ 802.11ax(2.4GHz): 3.6 to 573.5 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE40)

¬ 802.11ax(5GHz): 3.6 to 2402 (MCS0 to MCS11, NSS=1 to 4, HE20 to HE160(80+80))

• Supported modulation types:

¬ 802.11b: BPSK, QPSK, CCK

¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

¬ 802.11n high-throughput (HT) support: HT 20/40

¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80

¬ 802.11ax(HE):BPSK,QPSK,CCK,16-QAM,64-QAM,256-QAM,1024-QAM

• Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

• 1×BLE5/Zigbee（802.15.4）module，up to 6dBm transmit power(class 1)，-93dBm RSSI. Hardware ready for Zigbee.

Interfaces

• 1× 10/100/1000/2500Mbps(RJ-45) port, Power over Ethernet (PoE) 802.3at compliant
• 1× 10/100/1000Mbps(RJ-45) port, Power over Ethernet (PoE) 802.3at compliant

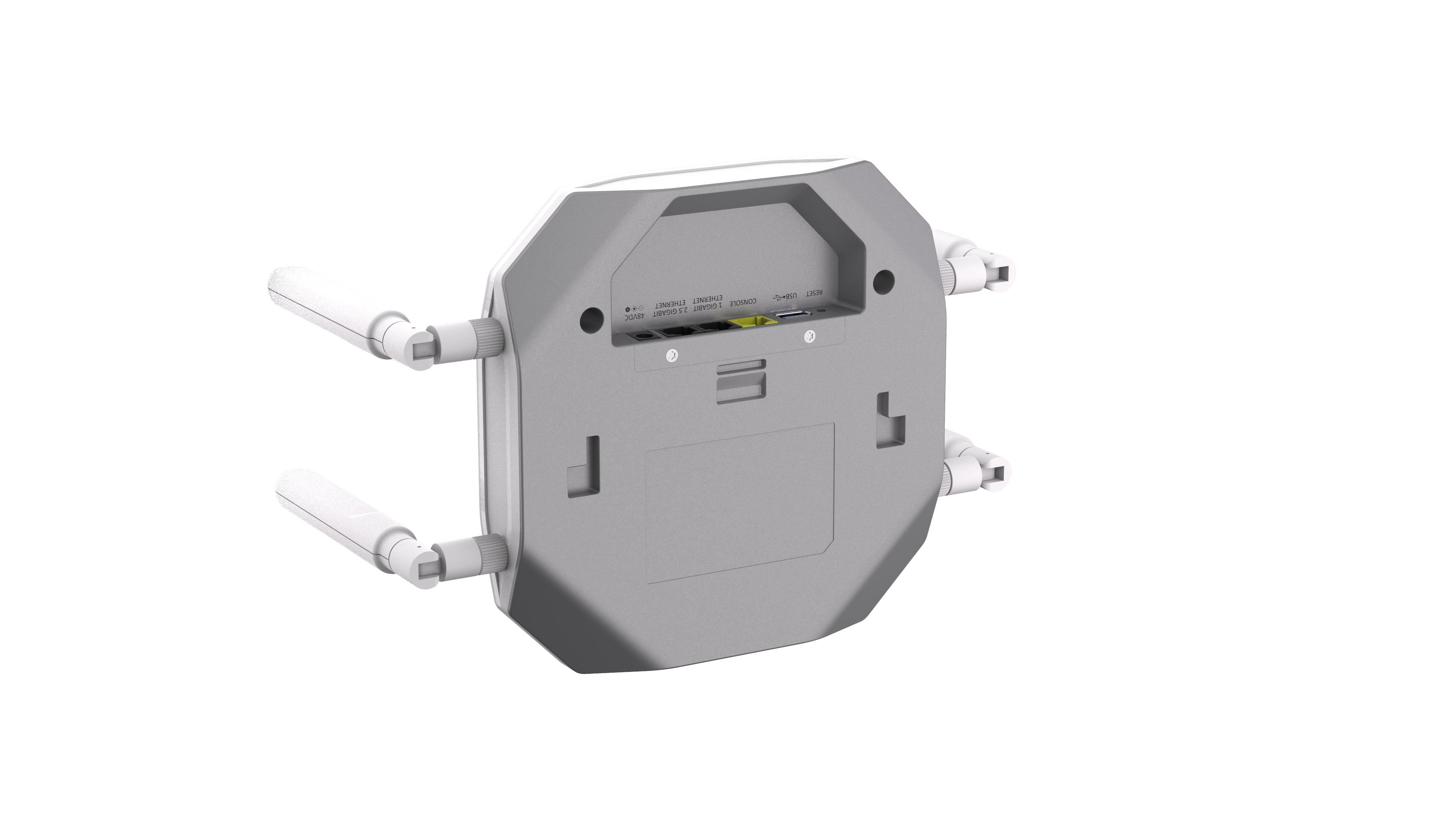

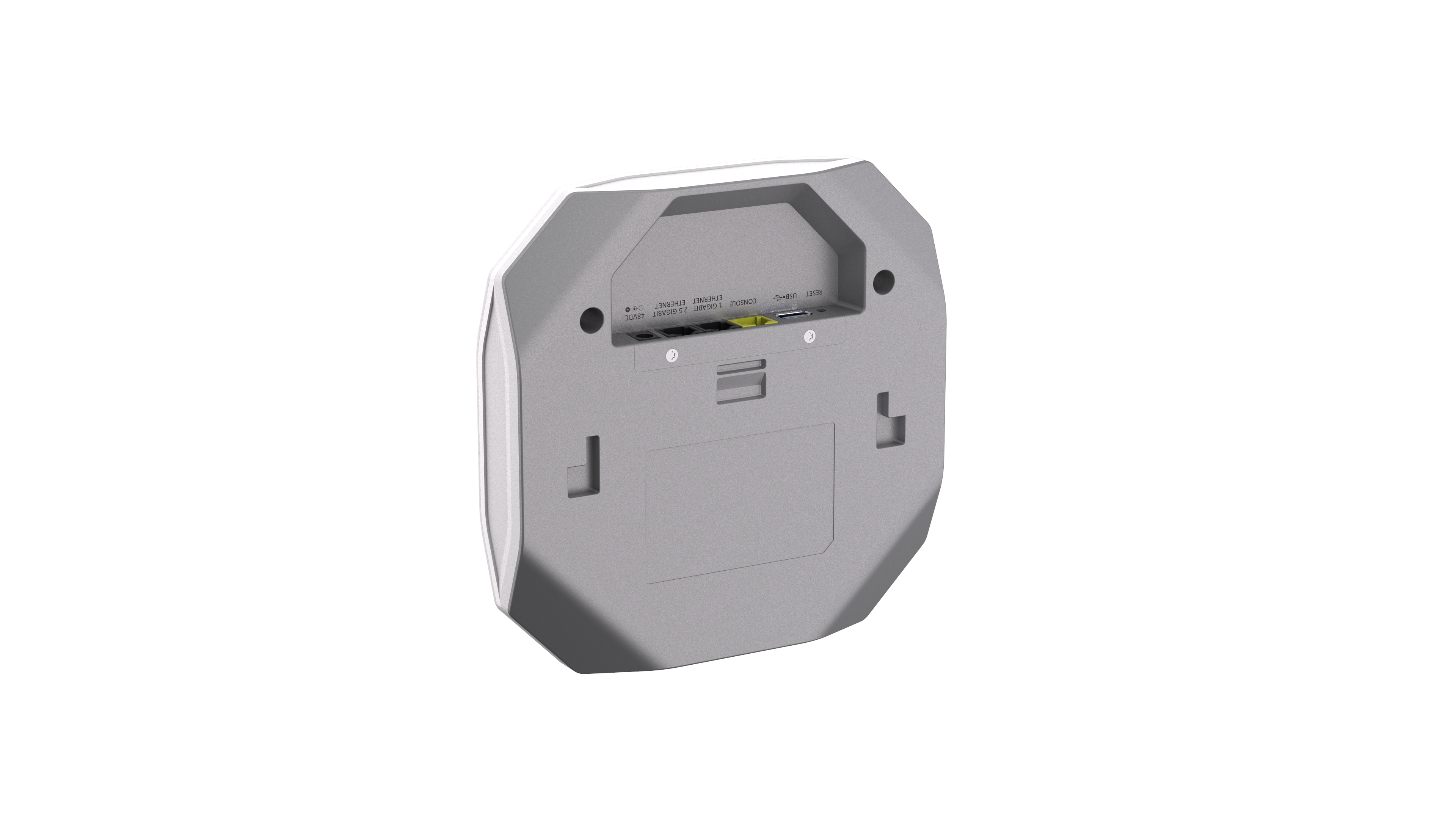

• 1× Management Console Port (RJ-45)
• 1× USB 2.0 TypeA(5V,500mA)
• Reset button: Factory reset. Press reset button for 5s, AP LEDs will quickly flash for 3s, then AP will restart and restore factory configurations.
• Kensington security slot

Visual Indicators (Tri-color LEDs)

• For system and radio status
• RED flashing: system abnormal, link down
• RED light: system startup
• RED and BLUE rotate flashing: OS upgrading
• BLUE light: system running, dual bands working
• GREEN flashing: no SSID created
• GREEN light: system running, single band working
• RED, BLUE and GREEN rotate flashing: system running, use for location of an AP

Security

Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

Antenna

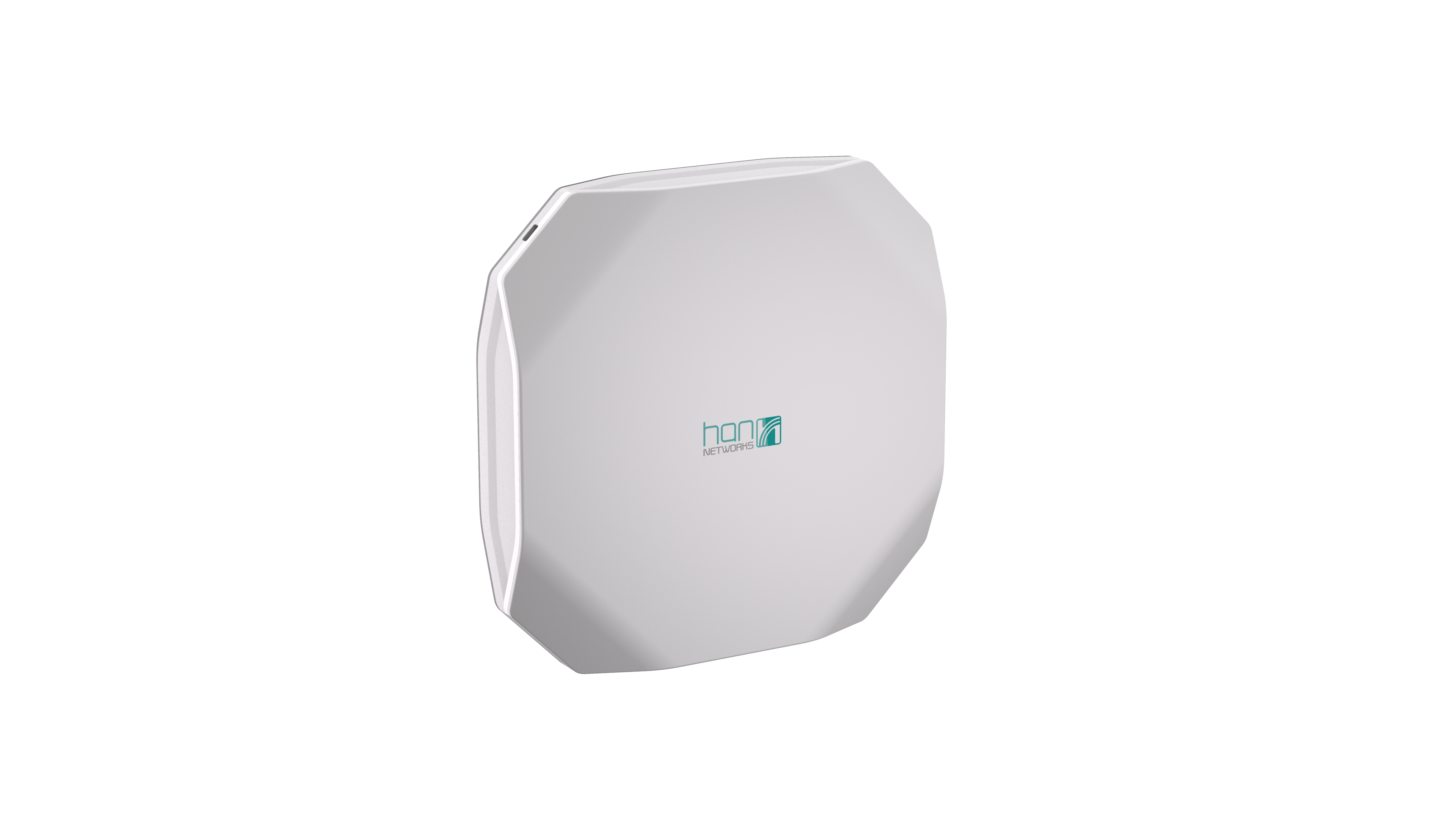

• AP321: Built-in 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz, BLE antenna

¬ Four integrated dual-band downtilt

omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.7dBi in 2.4GHz and 4.8dBi in 5GHz.

¬ Built-in antennas are optimized for

horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

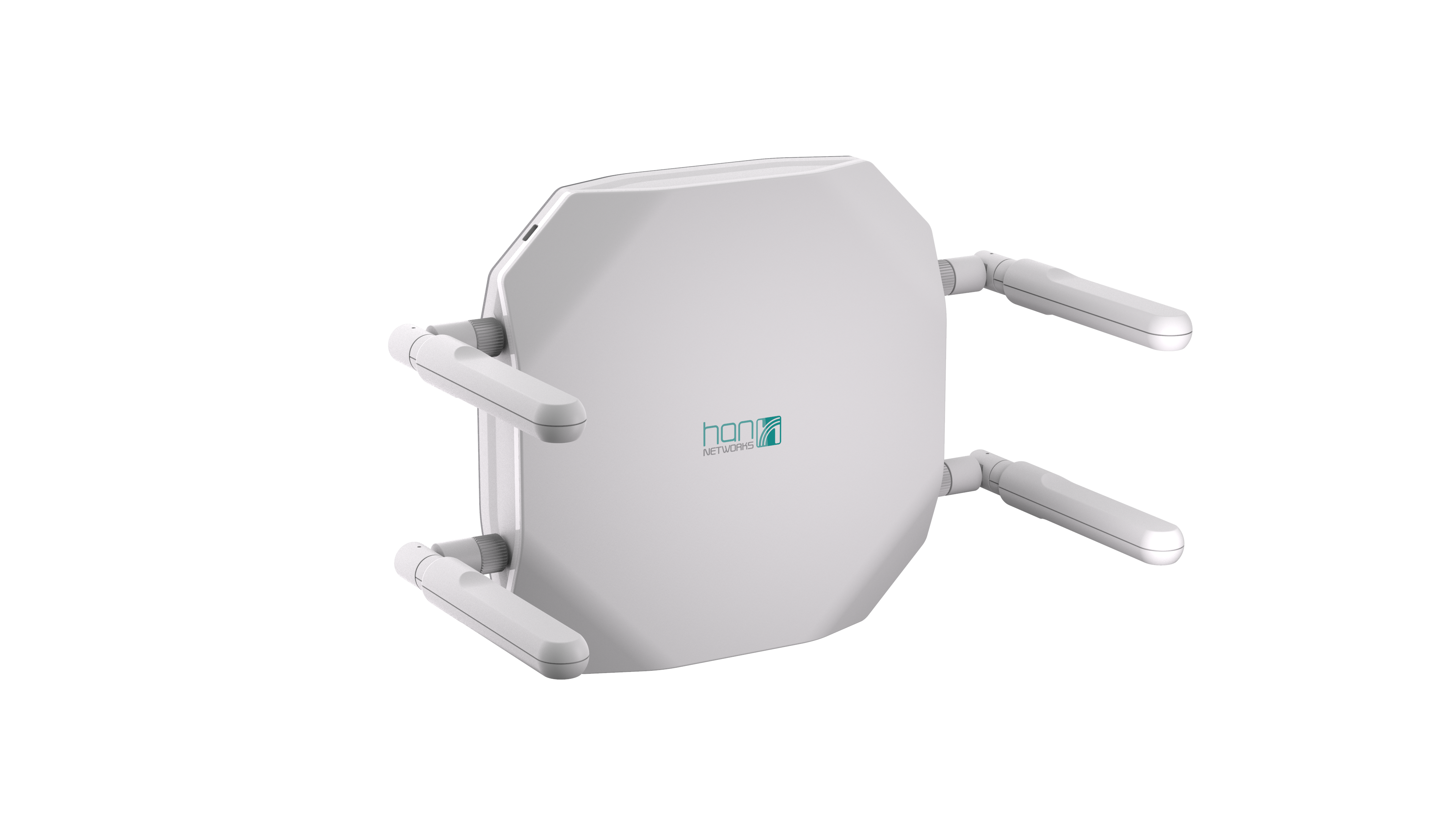

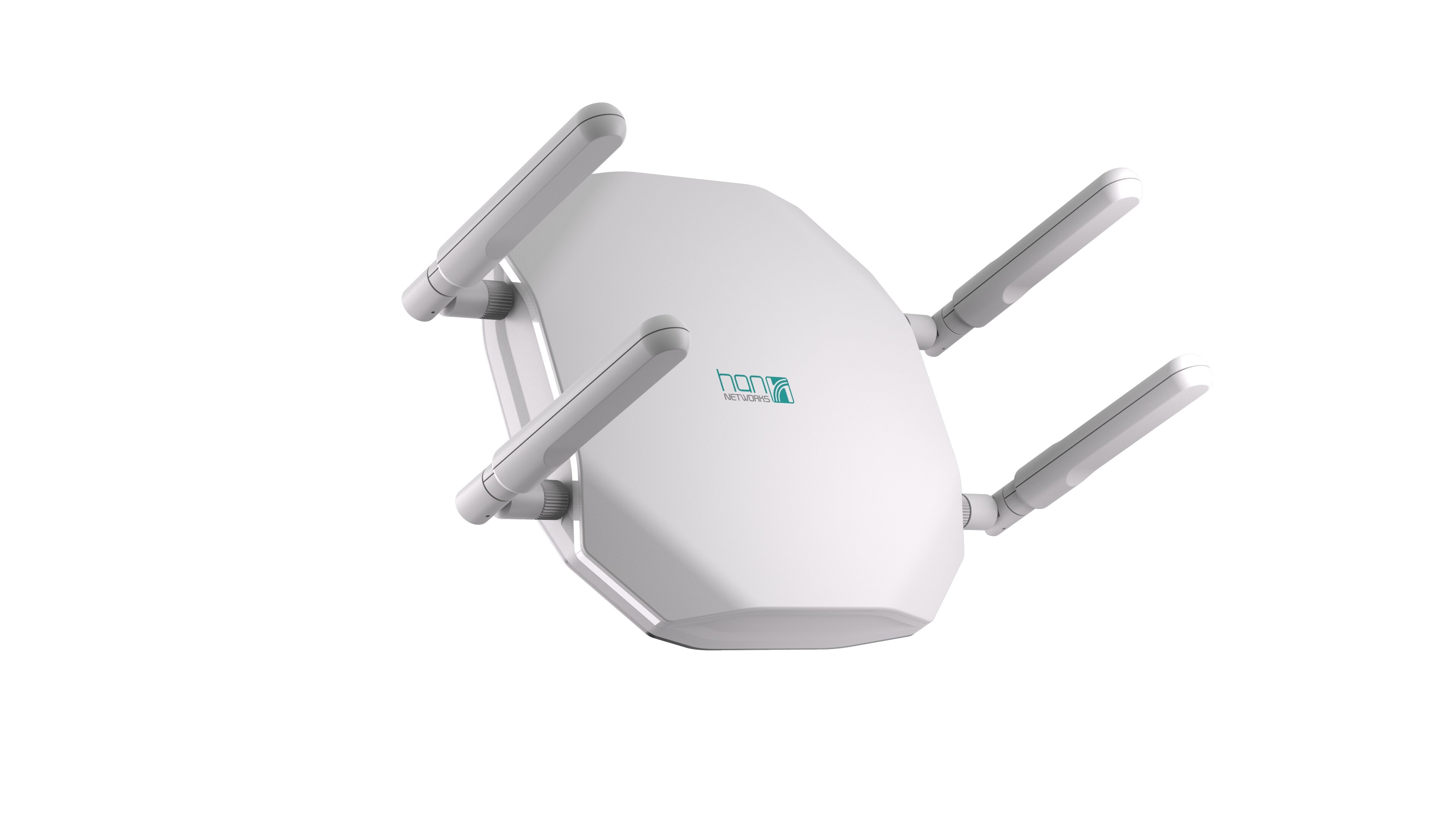

• AP321e: Four external RP-SMA antenna connectors

¬ ANT0-ANT1 are 2.4GHz/5GHz

dual band, NT2-ANT3 support 5GHz band.

• Integrated BLE antenna with peak gain 3.2dBi
• Optional external antennas(sold additional)

Receive sensitivity

                 2.4 GHz      5 GHz

1 Mb/s             -99

11 Mb/s            -90

6 Mb/s             -93           -93

54 Mb/s            -77           -77

HT20 (MCS 0/8)     -93           -93

HT20 (MCS 7/15)    -76           -74

HT40 (MCS 0/8)     -91           -90

HT40 (MCS 7/15)    -74           -71

VHT20 (MCS 0)     -93           -93

VHT20 (MCS 8)     -72           -70

VHT40 (MCS 0)     -91           -90

VHT40 (MCS 9)     -68           -66

VHT80 (MCS0)                   -87

VHT80 (MCS9)                   -62

HE20 (MCS 0)     -94            -93

HE20 (MCS 11)    -65            -65

HE40 (MCS 0)     -91            -91

HE40 (MCS 11)    -62            -62

HE80 (MCS0)                    -88

HE80 (MCS11)                   -59

Maximum Transmit power (per chain) ± 2dBm

                  2.4 GHz      5 GHz

1Mb/s            18 dBm

11Mb/s           18 dBm

6Mb/s            17 dBm      18 dBm

54Mb/s           16 dBm      16 dBm

HT20 (MCS 0/8)   17 dBm      17 dBm

HT20 (MCS 7/15)  14 dBm      15 dBm

HT40 (MCS 0/8)   17 dBm      17 dBm

HT40 (MCS 7/15)  14 dBm      15 dBm

VHT20 (MCS 0)   17 dBm      17 dBm

VHT20 (MCS 8)   14 dBm      15 dBm

VHT40 (MCS 0)   17 dBm      17 dBm

VHT40 (MCS 9)   14 dBm      15 dBm

VHT80(MCS0)                 17 dBm

VHT80 (MCS9)                15 dBm

HE20 (MCS 0)     17dBm      17 dBm

HE20 (MCS 11)    12dBm      13 dBm

HE40 (MCS 0)     17dBm      17 dBm

HE40 (MCS 11)    12dBm      13 dBm

HE80 (MCS0)                 17 dBm

HE80 (MCS11)                13 dBm

Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Power

• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Maximum (worst case) power consumption:
• 8W (802.3at PoE or DC)
• Direct DC source: 48V DC nominal, +/- 5%
• Power over Ethernet (PoE): IEEE 802.3at/af source
• Unrestricted functionality with 802.3at PoE
• 5GHz downgrade to 2*2:2 and disabled USB with 802.3af PoE

Mounting

• The AP ships with mount kits for flat-surface (wall).
• Optional mount kits for Open Silhouette and Flanged Interlude.
• Optional mount kits for 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.

Environmental

• Operating temperature: 0°C to 50°C (+32°F to +122°F)
• Humidity: 5% to 95% non-condensing
• Storage and transportation Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/weight

• Single AP excluding packing box and accessories

¬ 180mm (W) x 180mm (D) x 36mm (H) -7.08” (W) x 7.08” (D) x 1.41” (H) / 751g / 1.66lb

• Single AP including packing box and accessories

¬ 228mm (W) x 198mm (D) x 66mm (H) -8.97” (W) x 7.79” (D) x 2.59”(H)/ 920g / 2.02lb

Reliability

MTBF: 1,104,490 hours (126.08 years) at +25ºC operating temperature

Capacity

• Up to 8 SSID/Radio (16 SSID/AP), hardware ready for 16 SSID per radio (32 SSID/AP)
• Support for up to 1024 associated client devices
• Up to 8k APs managed by HAN Networking Management Platform
• Up to 255 APs per Web managed (HTTP/HTTPS) cluster

Software feature

• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with CSP
• Captive Portal
• Internal User Database
• Radius Client
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP) with support of third-party partner
• NTP server client
• ACL
• Wireless MESH P2P/P2MP
• Rogue AP location and containment
• Wireless Attack Detection
• System log report
• SNMP Trap Notification with CSP/ESP
• Floor plan and heat map with CSP/ESP

Note: some features are limited by local regulatory settings

Authentication & Encryption

• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3(WPA3 -Enterprise with CNSA Option, Personal(SAE), Enhanced Open(OWE))
• 802.1X
• Portal page authentication
• Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

IEEE standard

• IEEE 802.11a/b/g/n/ac
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.11k Radio Resource Management
• IEEE 802.11v BSS Transition Management
• IEEE 802.11r Fast roaming

Regulatory & certification

• CB Scheme Safety, cTUVus
• CE Marked
• FCC
• EN 60601-1-1 & EN 60601-1-2
• RoHS, REACH, WEEE
• Wi-Fi Alliance (WFA) certified Wi-Fi 6, Enhanced Open ( OWE)
• Wi-Fi Alliance (WFA) certified Passpoint R2
• UL2043 plenum rating
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• IEC/EN 60950 and 62368
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
• SRRC
