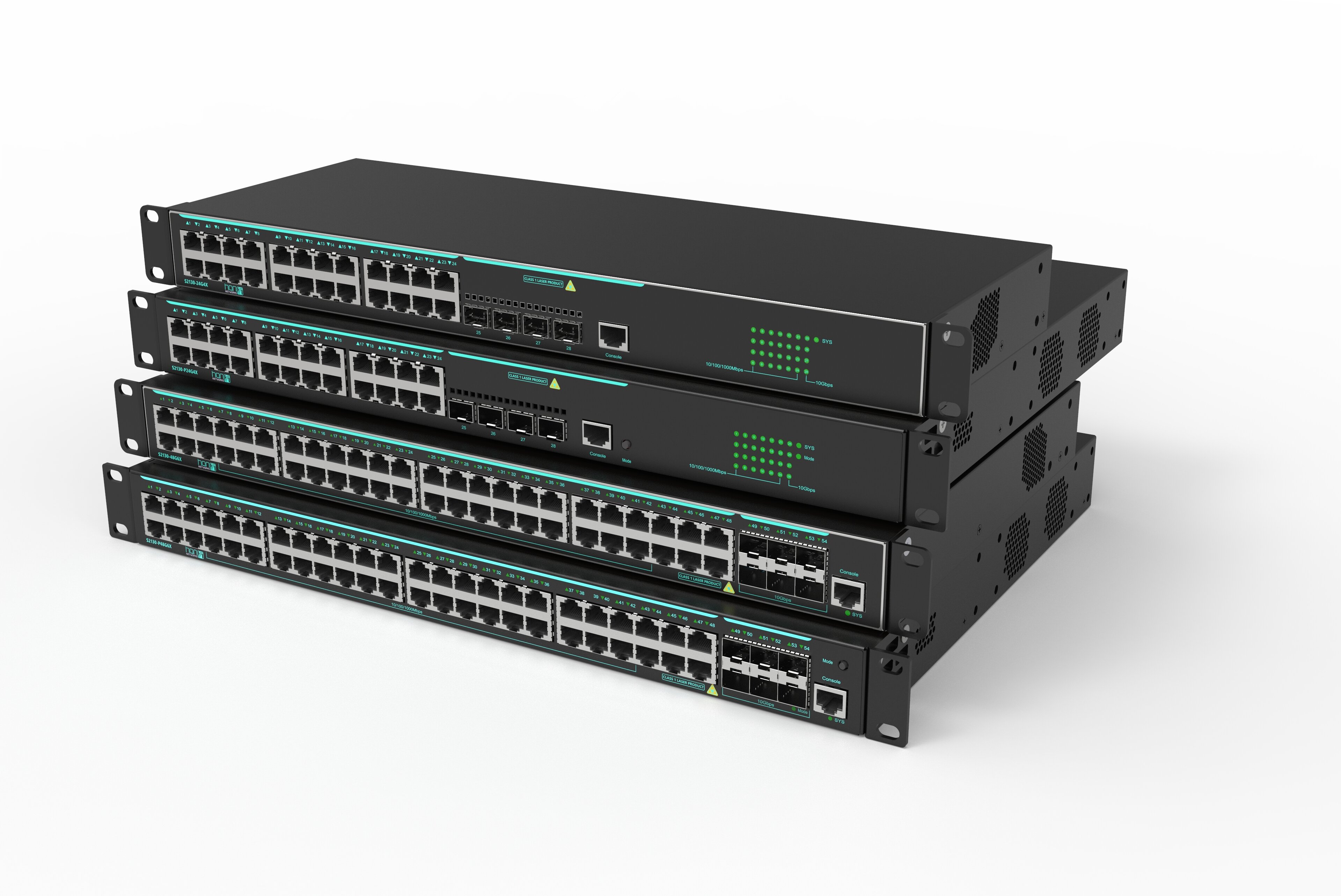

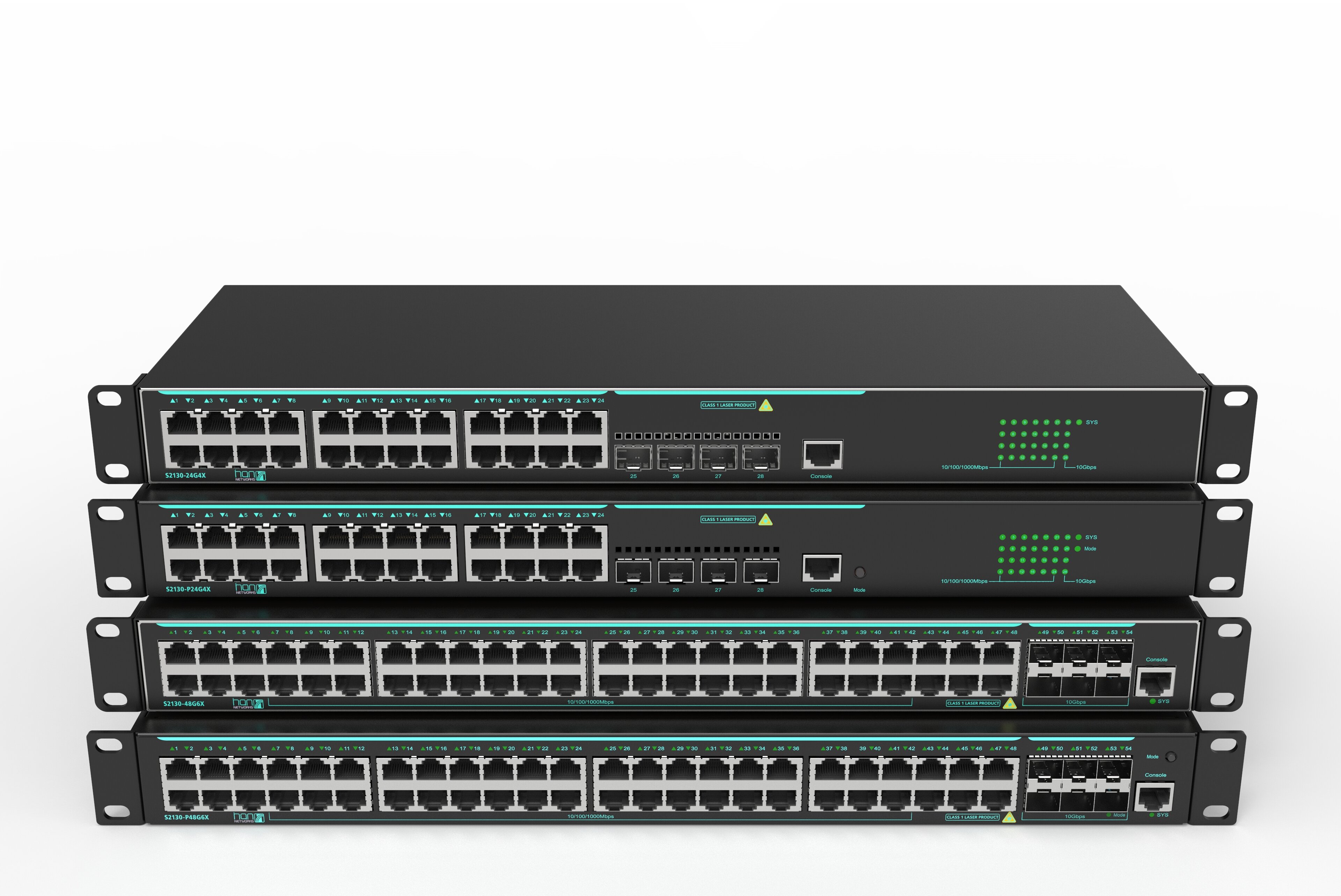

S2130 Smart Gigabit Ethernet LAN Switch Family

Designed for high-performance cloud computing, data centers, and high-end campus networks, this solution is based on new high-performance hardware with enhanced Layer 3 features. It provides high performance, reliability, security, and simplified network access. It is widely applicable in enterprise networks, including campus networks, branch offices, and workgroup environments, enabling convenient access for workstations, wireless access points, IP phones, and IoT (Internet of Things) devices.

Features

Management

- Supports management through a web interface (WebView 2.0), command-line interface (CLI), and Simple Network Management Protocol (SNMP).

- Enables cloud-based, secure, elastic, and scalable network management with Huawei’s Aotian CSP (Cloud Service Platform).

- Compatible with Huawei’s Aotian ESP Network Management System (NMS) for efficient network oversight.

Security

- Huawei Aotian SAMP (Security and Access Management Platform) provides flexible authentication for terminal devices and users.

- Advanced Quality of Service (QoS) for traffic control and Access Control Lists (ACL), including an embedded Denial of Service (DoS) engine to filter out attack traffic.

- Broad user-facing functionalities, such as self-learning Port Security (LPS), port mapping, DHCP binding tables, and User Network Profiles (UNP).

Performance and Redundancy

- Supports Layer 3 routing features, including static routing for IPv4 and IPv6, as well as advanced routing protocols like RIP and OSPF.

- Delivers line-rate switching and routing performance.

- High availability with support for virtual chassis, remote/redundant stacking links, master/backup device failover, and in-service software upgrades and configuration rollbacks.

Technical Specifications

model	S2130-24G4X-S S2130-24G4X-L S2130-24G4X_E	S2130-P24G4X-S S2130-P24G4X-L S2130-P24G4X-E	S2130-48G6X-S S2130-48G6X-E	S2130-P48G6X-S S2130-P48G6X-E
Switch Capacity	128Gbps	128Gbps	216Gbps	216Gbps
Switch frame rate	126Mpps	126Mpps	222Mpps	222Mpps
MAC capacity	16K	16K	16K	16K
Gigabit RJ45	24	24 PoE+	48	48 PoE+
1G/10G SFP+	4 “-L”: 4 SFP by default; Could be upgraded to 4 SFP+ by licenses	4 “-L”: 4 SFP by default; Could be upgraded to 4 SFP+ by licenses	6	6
Console port	1	1	1	1
Power supply	Internal	Internal	Internal	Internal
Fans	1	2	1	2
CPU	1 GHz MIPS dual core	1 GHz MIPS dual core	1 GHz MIPS dual core	1 GHz MIPS dual core
Flash	256MB	256MB	256MB	256MB
RAM	1G DDR4	1G DDR4	1G DDR4	1G DDR4
Packet buffers	16 Mb/s	16 Mb/s	16 Mb/s	16 Mb/s
System power consumption (25℃)	28.1W	28.3W	47.7W	54.8W
Power consumption w/PoE	N/A	416.6W	N/A	804.7W
Input voltage	100V～240VAC, 50/60Hz	100V～240VAC, 50/60Hz	100V～240VAC, 50/60Hz	100V～240VAC, 50/60Hz
dimensions (mm)	442x160x43.6	440x320x43.6	442x260x43.6	440x320x43.6
Weight (w/o packaging & accessories)	2.05Kg	4.15Kg	4.15Kg	5.10Kg
Operating temperature	0℃-45℃	0℃-45℃	0℃-45℃	0℃-45℃
Humidity (operating)	5%-95% noncondensing	5%-95% noncondensing	5%-95% noncondensing	5%-95% noncondensing
Storage temperature	-40℃-70℃	-40℃-70℃	-40℃-70℃	-40℃-70℃
