Radio specification

• AP type: Indoor, dual radio, 5 GHz 802.11ax 2x2:2 and 2.4 GHz 802.11ax 2x2:2
• 5 GHz: Two spatial streams for up to 1.2 Gb/s wireless data rate
• 2.4 GHz: Two spatial streams for up to 573.5 Mb/s wireless data rate
• Supported frequency bands (country-specific restrictions apply):

¬ 2.400 - 2.4835 GHz
¬ 5.150 - 5.250 GHz
¬ 5.250 - 5.350 GHz
¬ 5.470 - 5.725 GHz
¬ 5.725 - 5.850 GHz

• Available channels: Dependent on configured regulatory domain
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mbps):

¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24,36,48,54
¬ 802.11n:6.5 to 300 (MCS0 to MCS15, HT20 to HT40),256-QAM 400
¬ 802.11ac(5GHz): 6.5 to 866.7 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)，1024-QAM 1083
¬ 802.11ax(2.4GHz): 3.6 to 573.5(MCS0 to MCS11, NSS=1 to 2, HE20 to HE40)
¬ 802.11ax(5GHz): 3.6 to 1201(MCS0 to MCS11, NSS=1 to 2, HE20 to HE80)

• Supported modulation types:

¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
¬ 802.11ax:BPSK,QPSK,CCK,16-QAM,64-QAM,256-QAM,1024-QAM

• Advanced Cellular Coexistence (ACC)¬Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

Visual Indicators (Tri-color LEDs)

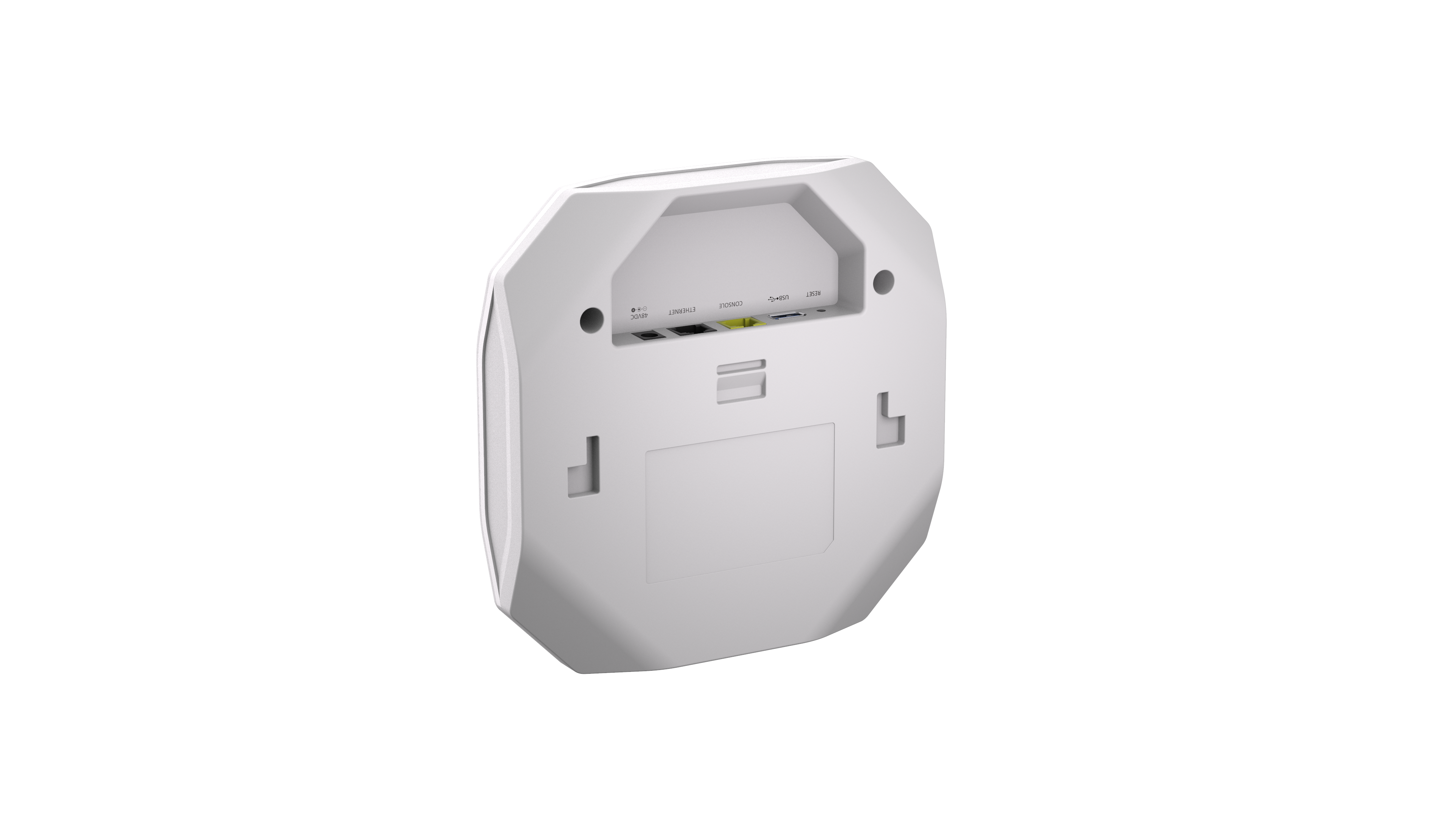

• 2× 10/100/1000Mbps(RJ-45) port, Eth0 -Eth1, Power over Ethernet (PoE) 802.3af
• 1× Management ConsolePort(RJ-45)
• 1× USB 2.0 TypeC (5V,500mA)
• Reset button: Factory reset. Press reset button for 5s, AP LEDs will quickly flash for 3s, then AP will restart and restore factory configurations.
• Kensington security slot

Visual Indicators (Tri-color LEDs)

• For system and radio status

¬ RED flashing: system abnormal, link down

¬ RED light: system startup

¬ RED and BLUE rotate flashing: OS upgrading

¬ BLUE light: system running, dual bands working

¬ GREEN flashing: no SSID created

¬ GREEN light: system running, single band working

¬ RED, BLUE and GREEN rotate flashing: system running, use for location of an AP

Antenna

• AP301: Built-in 2×2:2 @ 2.4GHz, 2x2:2 @ 5GHz

¬ integrated dual-band downtiltomni-directional antennas for 2x2 MIMO with peak antenna gain of 3.3dBi in 2.4GHz and 3.3dBi in 5GHz.

¬ Built-in antennas are optimized forhorizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

Receive sensitivity (per chain)

                2.4 GHz      5 GHz

1 Mb/s             -97

11 Mb/s            -90

6 Mb/s             -93          -93

54 Mb/s            -76          -77

HT20 (MCS0/8)     -93          -93

HT20 (MCS7/15)    -73          -76

HT40 (MCS0/8)     -91          -91

HT40 (MCS7/15)    -72          -74

VHT20 (MCS0)     -93          -93

VHT20 (MCS8)     -71          -73

VHT40 (MCS0)     -91          -91

VHT40 (MCS9)     -67          -68

VHT80 (MCS0)                  -88

VHT80 (MCS9)                  -64

HE20 (MCS0)      -93           -93

HE20 (MCS11)     -64           -65

HE40 (MCS0)      -90           -91

HE40 (MCS11)     -62           -62

HE80 (MCS0)                   -88

HE80 (MCS11)                  -59

Maximum Transmit power (per chain)

                  2.4 GHz      5 GHz

1Mb/s            18 dBm

11Mb/s           18 dBm

6Mb/s            18 dBm      18 dBm

54Mb/s           16 dBm      16 dBm

HT20 (MCS0/8)    18 dBm      18 dBm

HT20 (MCS7/15)   15 dBm      15 dBm

HT40 (MCS0/8)    18 dBm      18 dBm

HT40 (MCS7/15)   15 dBm      15 dBm

VHT20 (MCS0)    18 dBm      18 dBm

VHT20 (MCS8)    14 dBm      15 dBm

VHT40 (MCS0)    18 dBm      18 dBm

VHT40 (MCS9)    14 dBm      15 dBm

VHT80(MCS0)                 18 dBm

VHT80 (MCS9)                 14 dBm

HE20 (MCS0)     18dBm       18 dBm

HE20 (MCS11)    14dBm       15 dBm

HE40 (MCS0)     18dBm       18 dBm

HE40 (MCS11)    14dBm       15 dBm

HE80 (MCS0)                  18 dBm

HE80 (MCS11)                 14 dBm

Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Power

• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source: 48V DC nominal, +/- 5%
• Maximum (worst case) power consumption:

¬ 13.1W (802.3af PoE or DC)

¬4.21W in idle mode

Mounting

• The AP ships with mount kits for flat-surface (wall).
• Optional mount kits for Open Silhouette and Flanged Interlude.
• Optional mount kits for 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.

Environmental

• Operating temperature: 0°C to 45°C (+32°F to +113°F)
• Humidity: 5% to 95% non-condensing
• Storage and transportation Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/weight

• Single AP excluding packing box and accessories

¬ 180mm (W) x 180mm (D) x 36mm (H) -7.08” (W) x 7.08” (D) x 1.41” (H) / 574g / 1.26lb

• Single AP including packing box and accessories

¬ 228mm (W) x 198mm (D) x 66mm (H) -8.97” (W) x 7.79” (D) x 2.59”(H)/ 780g / 1.71lb

Reliability

MTBF: 1,118,457 hours (127.67 years) at +25ºC operating temperature

Capacity

• Up to 8 SSID/Radio (16 SSID/AP), hardware ready for 16 SSID per radio (32 SSID/AP)
• Support for up to 1024 associated client devices
• Up to 8k APs managed by HAN Networking Management Platform
• Up to 255 APs per Web managed (HTTP/HTTPS) cluster

Software feature

• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with CSP
• Captive Portal
• Internal User Database
• Radius Client
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White / black list
• Zero-touch provisioning (ZTP) with support of third-party partner
• NTP server client
• ACL
• Wireless MESH P2P/P2MP
• Rogue AP location and containment
• Wireless Attack Detection
• System log report
• SNMP Trap Notification with CSP/ESP
• Floor plan and heat map with CSP/ESP

Note: some features are limited by local regulatory settings

Authentication & Encryption

• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3(WPA3 -Enterprise with CNSA Option, Personal(SAE), Enhanced Open(OWE))
• 802.1X
• Portal page authentication
• Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

IEEE standard

• IEEE 802.11a/b/g/n/ac
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.11k Radio Resource Management
• IEEE 802.11v BSS Transition Management
• IEEE 802.11r Fast roaming

Regulatory & certification

• CB Scheme Safety, cTUVus
• CE Marked
• FCC
• EN 60601-1-1 & EN 60601-1-2
• RoHS, REACH, WEEE
• Wi-Fi Alliance (WFA) certified Wi-Fi 6
• Wi-Fi Alliance (WFA) certified Passpoint R2
• UL2043 plenum rating
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• IEC/EN 60950 and 62368
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
• SRRC
• WAPI
