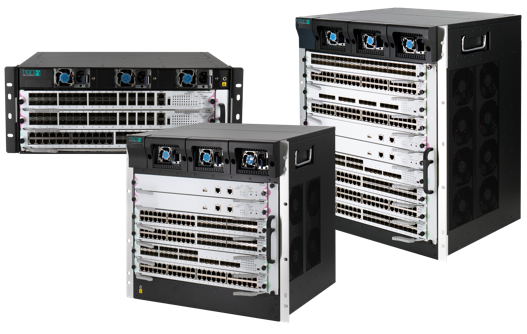

S11000Carrier-level Core Switch

HAN S11000 Series, a new generation T-bit carrier-level core switch oriented for carrier's IP MANs and campus networks. S11000 series chassis core switch adopts an advanced distributed multi-level switching matrix architecture, which has the characteristics of high security and high reliability; As an advanced, flexible, and high-performance modular switch, it is the ideal choice for the convergence layer and core layer of enterprise park networks.

Features

Advanced Hardware Architecture Design & Leading Processing Capacity

-With the leading architecture of distributive multi-stage switching matrix, the ASIC switch chip and the multi-core processor, S11000 Series meets the carrier-level core equipment requirements of high performance, high capacity, high density and expansion.

-Supports wire-speed switching of 3 layers without blocking between service boards.

-High performance, high capacity, high density, and scalability for operational level core equipment

Carrier-level High Reliability

-The key components support redundancy design. All system modules support hot-swap and seamless switching without manual intervention.

-No interruption during system upgrading, guaranteeing the user data non-stop forwarding during system upgrading

-High Reliability (99.999%): MTTR is 50ms, meeting the requirement of the carrier-level service.

Comprehensive Security Mechanisms

-advanced hardware architecture design, providing the hierarchical scheduling and protection of the packet

-Providing users with a complete security authentication mechanism

-Enhanced Service Security Mechanism, preventing the illegal access request.

Technical Specifications

Models	S11003	S11006	S11010
Switch Capacity	736Gbps/1.47Tbps	1.28/2.56Tbps	2.56/5.12Tbps
Forwarding Rate	552/1104Mpps	810/1920Mpps	1920/3840Mpps
Number of Slots	3	6	10
Number of Service Slots	3	4	8
Dimensions (WxDxH) mm	482x377x178 4U	482x370x397 9U	482x370x530 12U
Weight (empty chassis)	10.5kg	21kg	25.5kg
Power supply	AC: 100V-240V, 50Hz±10% DC: -48V
Environment	Operating temperature/humidity: 0°C-40°C ; 10%-90% non-condensing Storage temperature/ humidity: -20°C-70°C ; 5%-95% non-condensing
MAC Switching Capacity	Static configuration and dynamically learning of MAC address Check and clear MAC address Configuring of MAC address aging time Limit on MAC address learning number MAC address filtering function Black-hole MAC items
VLAN	4K VLAN entries GVRP 1:1 and N:1 VLAN Mapping Basic QinQ and selective QinQ Private VLAN
STP	802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) BPDU protection, root protection and ring protection
Multicast	IGMP v1/v2/v3 IGMP Snooping IGMP Fast Leave Multicast group policy and multicast number limit Multicast traffic cross VLAN duplication PIM-DM, PIM-SM and PIM-SSM
IPv4	Static routing, RIP v1/v2, OSPF and BGP Policy based routing Load balance through equal-cost routing Graceful Restart of OSPF and BGP BFD for OSPF and BGP
IPv6	ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery MLD and MLD Snooping IPv6 static routing, RIPng, OSPFv3 Manual tunnel, ISATAP tunnel and 6-to-4 tunnel
MPLS VPN	LDP protocol MCE MPLS L2 VPN
QoS	Traffic classification of each field of L2/L3/L4 protocol headers CAR traffic control 802.1P/DSCP priority remark Multiple queuing algorithms such as SP, WRR or SP+WRR Tail-Drop, WRED Traffic supervision and traffic shaping Ingress and Egress ACL, and matching L2, L3, L4 and IP quintuples for copying, forwarding and discarding Hash algorithms and load balancing
Security features	Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet Port isolation Port security, IP+MAC+port binding DHCP Snooping, DHCP Option 82 IEEE 802.1x authentication Radius and TACACS+ authentication uRPF Command line authority control based on user levels
Reliability	Main control unit redundancy Power 1+1 backup Master control, service card hot swap and service automatic recovery Static/LACP link aggregation and cross service card link aggregation EAPS and ERPS VRRP Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731 GR for OSPF and BGP BFD for OSPF and BGP ISSU
Management and maintenance	Console, Telnet and SSH SNMP v1/v2/v3 Upload and download of TFTP files Remote Network Monitoring (RMON) Statistics analysis of sFLOW, Netflow
Value-added services	VSS
Energy saving	IEEE 802.3az green Efficient Ethernet
