Radio specification

• AP type: Outdoor, dual radio, 5 GHz 802.11ax 4x4:4 and 2.4 GHz 802.11ax 2x2:2
• 5 GHz: Four spatial stream DL/UL MU- MIMO for up to 2.402 Gb/s wireless data rate
• 2.4 GHz: Two spatial stream DL/UL MU- MIMO for up to 573.5 Mb/s wireless data rate
• Supported frequency bands (country-specific restrictions apply):

¬ 2.400 to 2.4835 GHz

¬ 5.150 to 5.250 GHz

¬ 5.250 to 5.350 GHz

¬ 5.470 to 5.725 GHz

¬ 5.725 to 5.850 GHz

• Available channels: Dependent on configured regulatory domain
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mbps):

¬ 802.11b: 1, 2, 5.5, 11

¬ 802.11a/g: 6, 9, 12, 18, 24,36,48,54

¬ 802.11n(2.4GHz):6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

¬ 802.11n(5G):6.5 to 600 (MCS0 to MCS31, HT20 to HT40)

¬ 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80), 2166 with Q024-QAM

¬ 802.11ax(2.4GHz): 3.6 to 573.5 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE40)

¬ 802.11ax(5GHz): 3.6 to 2402 (MCS0 to MCS11, NSS=1 to 4, HE20 to HE160(80+80))

• Supported modulation types:

¬ 802.11b: BPSK, QPSK, CCK

¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

¬ 802.11n high-throughput (HT) support: HT 20/40

¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80

¬ 802.11ax(HE):BPSK,QPSK,CCK,16-QAM,64-QAM,256-QAM,1024-QAM

• Advanced Cellular Coexistence (ACC)

¬ Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

• 1×BLE5/Zigbee（802.15.4）module，up to 6dBm transmit power(class 1)，-93dBm RSSI. Hardware ready for Zigbee.

Interfaces

• 1× 10/100/1000/2500Mbps(RJ-45) port, Eth0, Power over Ethernet (PoE) 802.3bt/at compliant.
• 1× 10/100/1000Mbps(RJ-45) port, Eth1, up to 802.3at PSE in case of Eth0 802.3bt Type4 PoE input.
• 1×SFP. SFP module need to be purchased additionally.
• 1× USB 2.0 TypeC
• Reset button: Factory reset. Press reset button for 5s, AP LEDs will quickly flash for 3s, then AP will restart and restore factory configurations.

Visual Indicators (7 LEDs)

• For system and radio status

¬ SYS: ON, Bootloader-OS loading and system running; Flashing, Bootloader-OS upgrading.

¬ 4G: ON, 2.4GHz SSID created and running

¬ 5G: ON, 5GHz SSID created and running

¬ Eth0: ON, Ethernet0 linkup

¬ Eth1: ON, Ethernet1 linkup

¬ SFP ON: ON, SFP linkup

¬ PSE: ON, PSE enabled

Security

Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

Antenna

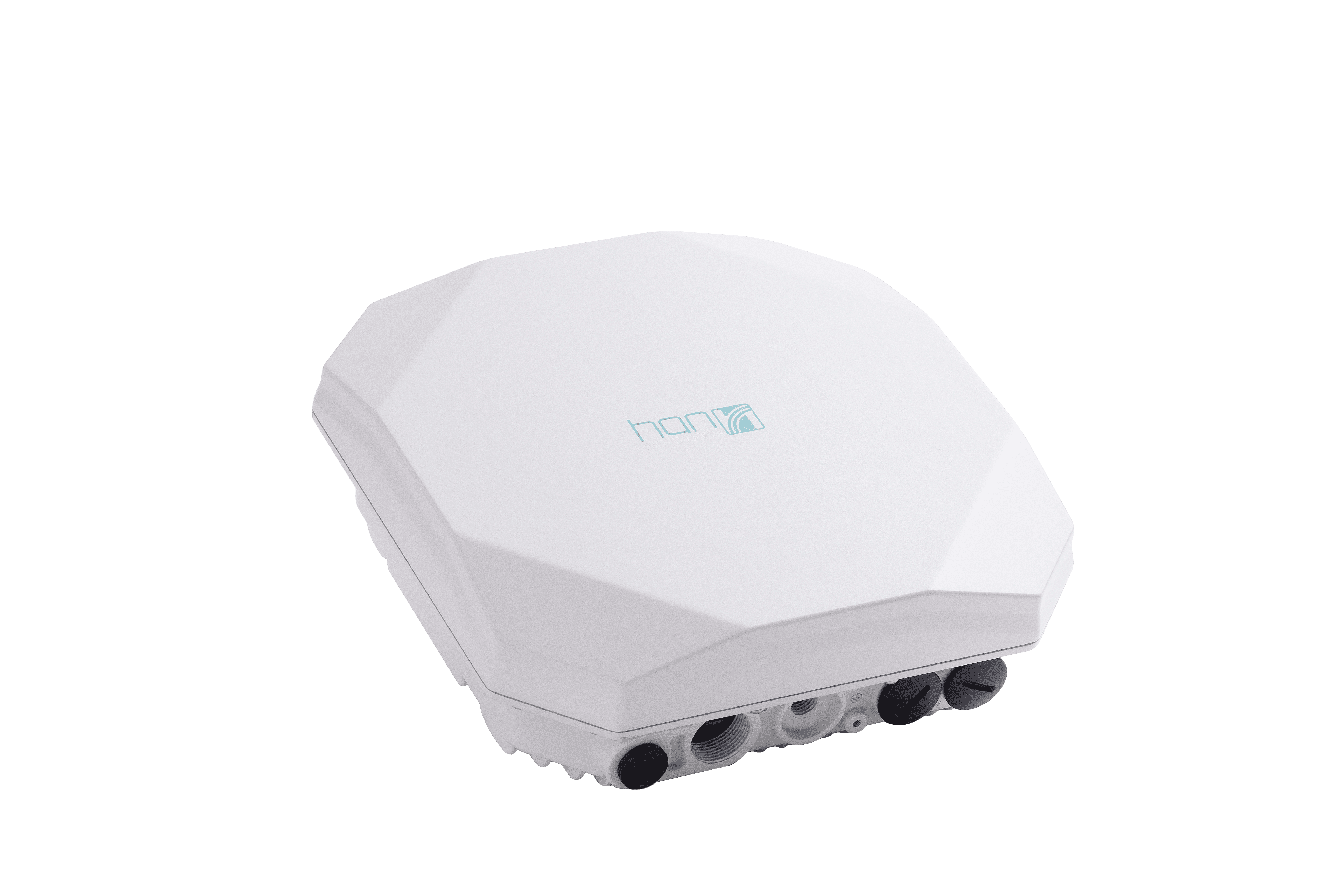

• AP361: Built-in 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz

¬ Four integrated 5GHz omni

antennas for 4x4 MIMO with peak antenna gain 6.48dBi, two integrated 2.4GHz omni antennas for 2x2 MIMO with peak antenna gain 4.85dBi.

• AP361D: Built-in 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz

¬ Four integrated 5GHz directional

antennas for 4x4 MIMO with peak antenna gain 7.4dBi, two integrated 2.4GHz omni antennas for 2x2 MIMO with peak antenna gain 7.5dBi.

¬ H80°x V80°

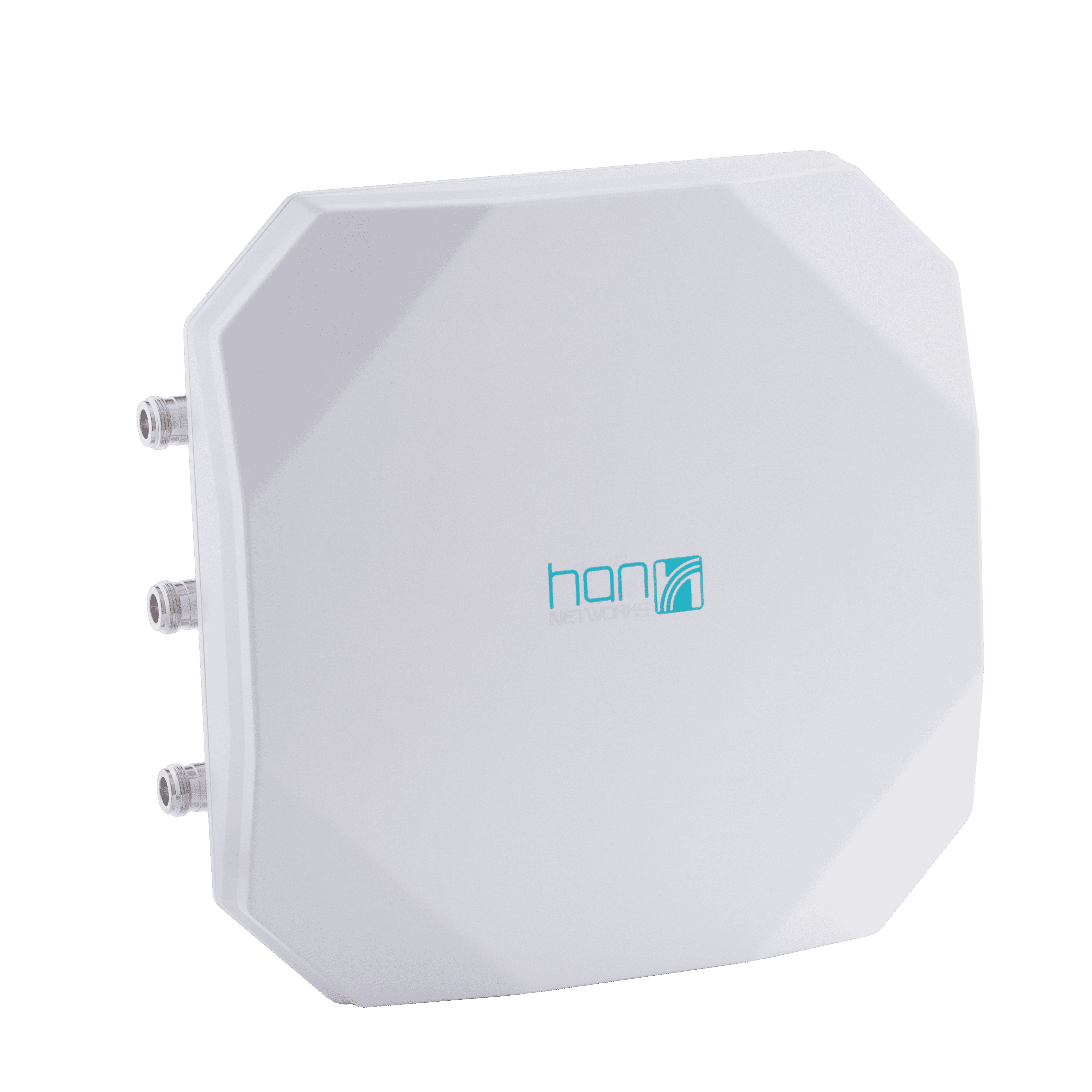

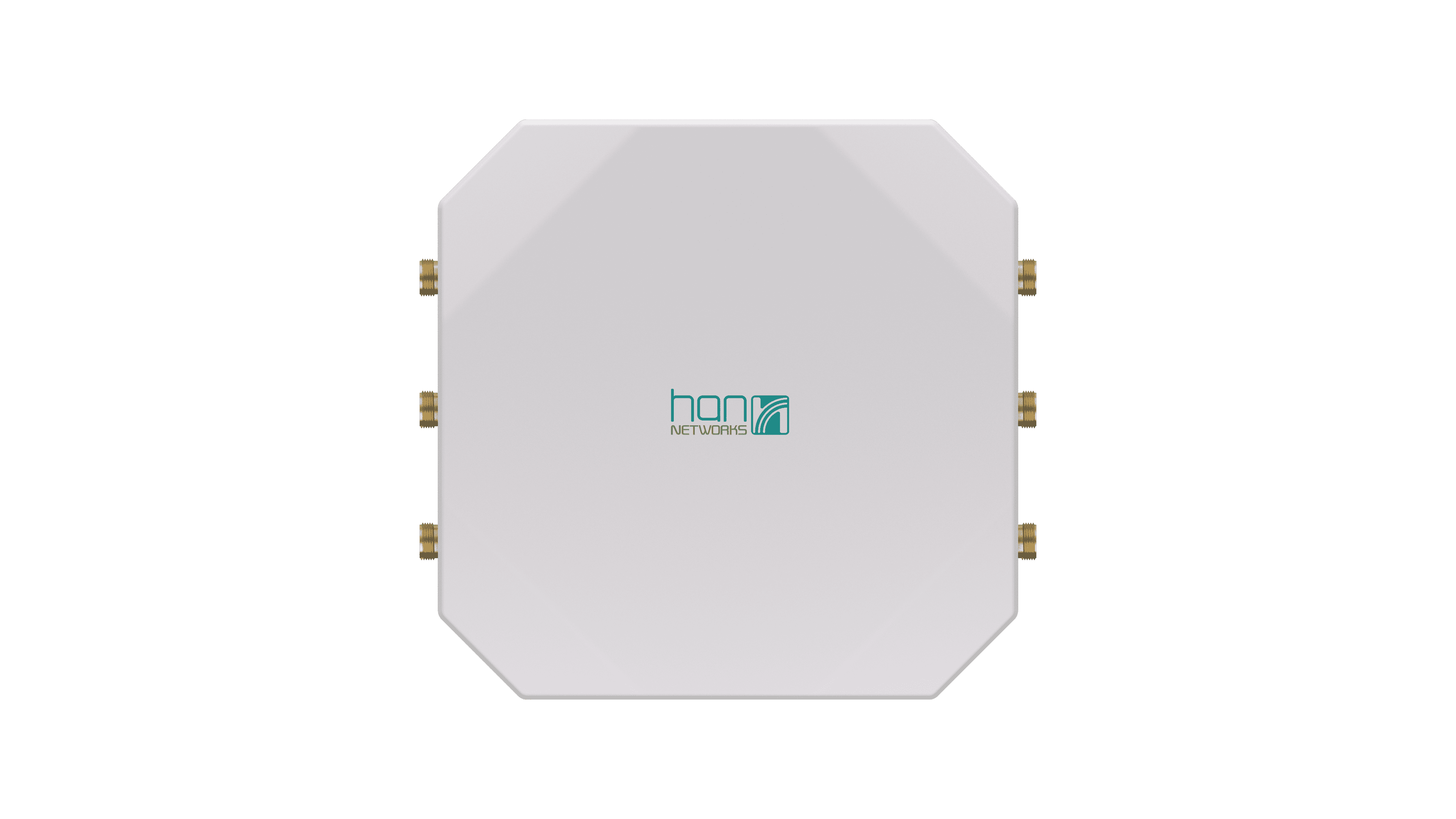

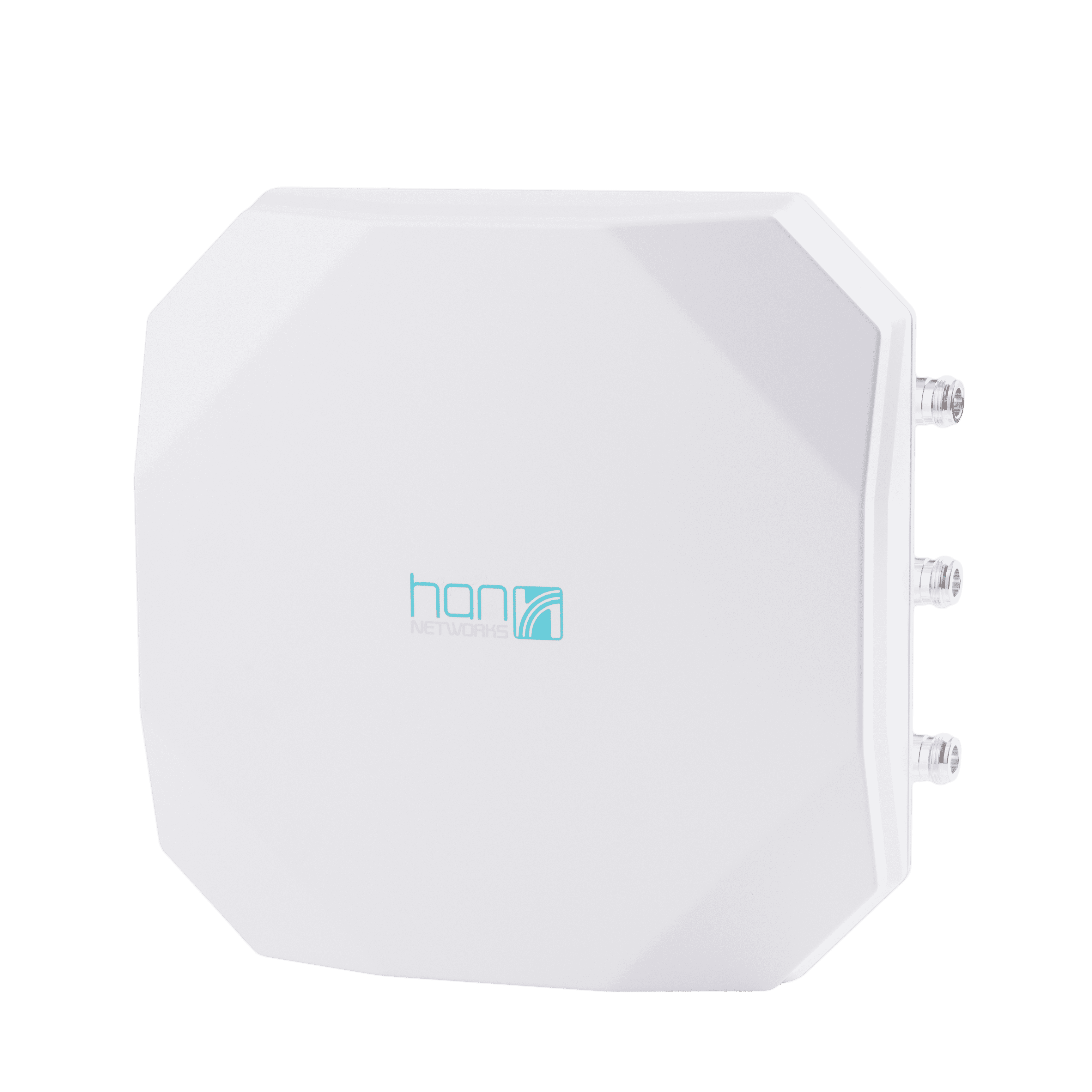

• AP361e: external antennas, 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz

¬ 6* N femal connectors,

built in 6KA antenna feeder lightning /port

¬ ANT0-ANT3 are 5GHz band,

ANT4-ANT5 support 2.4GHz band.

• Integrated BLE antenna
• Optional external antennas(sold additional)

Receive sensitivity (per chain)

                 2.4 GHz      5 GHz

1 Mb/s             -99

11 Mb/s            -89

6 Mb/s             -93           -91

54 Mb/s            -76           -74

HT20 (MCS 0/8)     -92           -90

HT20 (MCS 7/15)    -74           -72

HT40 (MCS 0/8)     -91           -88

HT40 (MCS 7/15)    -74           -70

VHT20 (MCS 0)     -92           -90

VHT20 (MCS 8)     -70           -68

VHT40 (MCS 0)     -91           -88

VHT40 (MCS 9)     -68           -64

VHT80 (MCS0)                   -86

VHT80 (MCS9)                   -61

HE20 (MCS 0)     -94            -92

HE20 (MCS 11)    -63            -62

HE40 (MCS 0)     -91            -89

HE40 (MCS 11)    -62            -60

HE80 (MCS0)                    -87

HE80 (MCS11)                   -58

Maximum Transmit power (per chain) ± 2dBm

                  2.4 GHz      5 GHz

1Mb/s            22 dBm

11Mb/s           22 dBm

6Mb/s            22 dBm      21 dBm

54Mb/s           21 dBm      20 dBm

HT20 (MCS 0/8)   22 dBm      21 dBm

HT20 (MCS 7/15)  21 dBm      19 dBm

HT40 (MCS 0/8)   22 dBm      21 dBm

HT40 (MCS 7/15)  21 dBm      18 dBm

VHT20 (MCS 0)   22 dBm      21 dBm

VHT20 (MCS 8)   20 dBm      18 dBm

VHT40 (MCS 0)   22 dBm      21 dBm

VHT40 (MCS 9)   20 dBm      18 dBm

VHT80(MCS0)                 21 dBm VHT80 (MCS9)                18 dBm

HE20 (MCS 0)    22 dBm       21 dBm

HE20 (MCS 11)   20 dBm       17 dBm

HE40 (MCS 0)    22 dBm       21 dBm

HE40 (MCS 11)   20 dBm       17 dBm

HE80 (MCS0)                  21 dBm

HE80 (MCS11)                 17 dBm

Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Power

• Supports Power over Ethernet (PoE)
• Maximum (worst case) power consumption:

¬ 64W (802.3bt Type4 PoE, full functions, GE port supports 802.3at PSE)

¬ 46W (802.3bt Type3 POE，GE port supports 802.3at PSE)

¬ 24W (802.3at POE，USB disabled)

¬ 10W (idle mode)

Mounting

• AP-MNT-OUT-H, for AP361,need to be ordered separately.
• AP-MNT-OUT, for AP361D, AP361e, AP271, Pole/Wall mounting, need to be ordered separately.

Environmental

• Operating temperature: -40°C to 65°C (-40°F to +149°F)
• Humidity: 5% to 95%
• Storage and transportation Temperature: -40°C to +85°C (-40°F to +185°F)
• Rating: IP67
• Wind resistance:

Up to 100MPH sustained winds

Up to 165MPH wind gusts

Dimensions/weight

• Single AP excluding packing box and accessories

¬ 243mm (W) x 243mm (D) x 85mm (H) -9.56” (W) x 9.56” (D) x 3.34” (H) / 2500g / 5.51lb

• Single AP including packing box and accessories

¬ 320mm (W) x 300mm (D) x 135mm (H) -12.6” (W) x 11.81” (D) x 5.31”(H)/ 3121g / 6.88lb

Reliability

MTBF: 1,003,257 hours (114.5 years) at +25ºC operating temperature

Capacity

• Up to 8 SSID/Radio (16 SSID/AP), hardware ready for 16 SSID per radio (32 SSID/AP)
• Support for up to 1024 associated client devices
• Up to 8k APs managed by HAN Networking Management Platform
• Up to 255 APs per Web managed (HTTP/HTTPS) cluster

Software feature

• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming

 L3 roaming with CSP

• Captive Portal
• Internal User Database
• Radius Client
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP) with support of third-party partner
• NTP server client
• ACL
• Wireless MESH P2P/P2MP
• Rogue AP location and containment
• Wireless Attack Detection
• System log report
• SNMP Trap Notification with CSP/ESP
• Floor plan and heat map with CSP/ESP

Note: some features are limited by local regulatory settings

Authentication & Encryption

• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3(WPA3 -Enterprise with CNSA Option, Personal(SAE), Enhanced Open(OWE))
• 802.1X
• Portal page authentication
• Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

IEEE standard

• IEEE 802.11a/b/g/n/ac
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.11k Radio Resource Management
• IEEE 802.11v BSS Transition Management
• IEEE 802.11r Fast roaming

Regulatory & certification

• CB Scheme Safety, cTUVus
• WFA certified Wi-Fi 6
• WFA certified Passpoint R2
• CE
• FCC
• EN 60601-1-1 & EN 60601-1-2
• RoHS, REACH, WEEE
• EMI and susceptibility (Class A)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
• EN 55032
• IEC/EN 60950 and 62368
• Wi-Fi Alliance (WFA) certified Wi-Fi 6, Enhanced Open ( OWE)
• Wi-Fi Alliance (WFA) certified Passpoint R2
• SRRC
