Radio specification

• AP type: Indoor, dual radio, 2.4 GHz 802.11ax 2x2:2, 5 GHz 802.11ax 2x2:2
• 2.4 GHz: Two spatial stream for up to 573.5 Mb/s wireless data rate.
• 5 GHz: Two spatial stream for up to 1.201 Gb/s wireless data rate.
• Supported frequency bands (country-specific restrictions apply):

¬ 2.400 to 2.4835 GHz

¬ 5.150 to 5.250 GHz

¬ 5.250 to 5.350 GHz

¬ 5.470 to 5.725 GHz

¬ 5.725 to 5.850 GHz

• Available channels: Dependent on configured regulatory domain
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported radio technologies:

¬ 802.11b: Direct-sequence spread-spectrum (DSSS)

¬ 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

¬ 802.11ax: Orthogonal frequency-division multiple access (OFDMA)

• Supported data rates (Mbps):

¬ 802.11b: 1, 2, 5.5, 11

¬ 802.11a/g: 6, 9, 12, 18, 24,36,48,54

¬ 802.11n:6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

¬ 802.11ac: 6.5 to 866.7 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

¬ 802.11ax(2.4GHz): 3.6 to 573.5 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE40)

¬ 802.11ax(5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE80)

• Supported modulation types:

¬ 802.11b: BPSK, QPSK, CCK

¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

¬ 802.11n high-throughput (HT) support: HT 20/40

¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80

¬ 802.11ax (HE): HE20/40/80

¬ 802.1×BLE5/Zigbee（802.15.4）module，up to 6dBm transmit power(class 1)，-93dBm RSSI. Hardware ready for Zigbee.

Interfaces

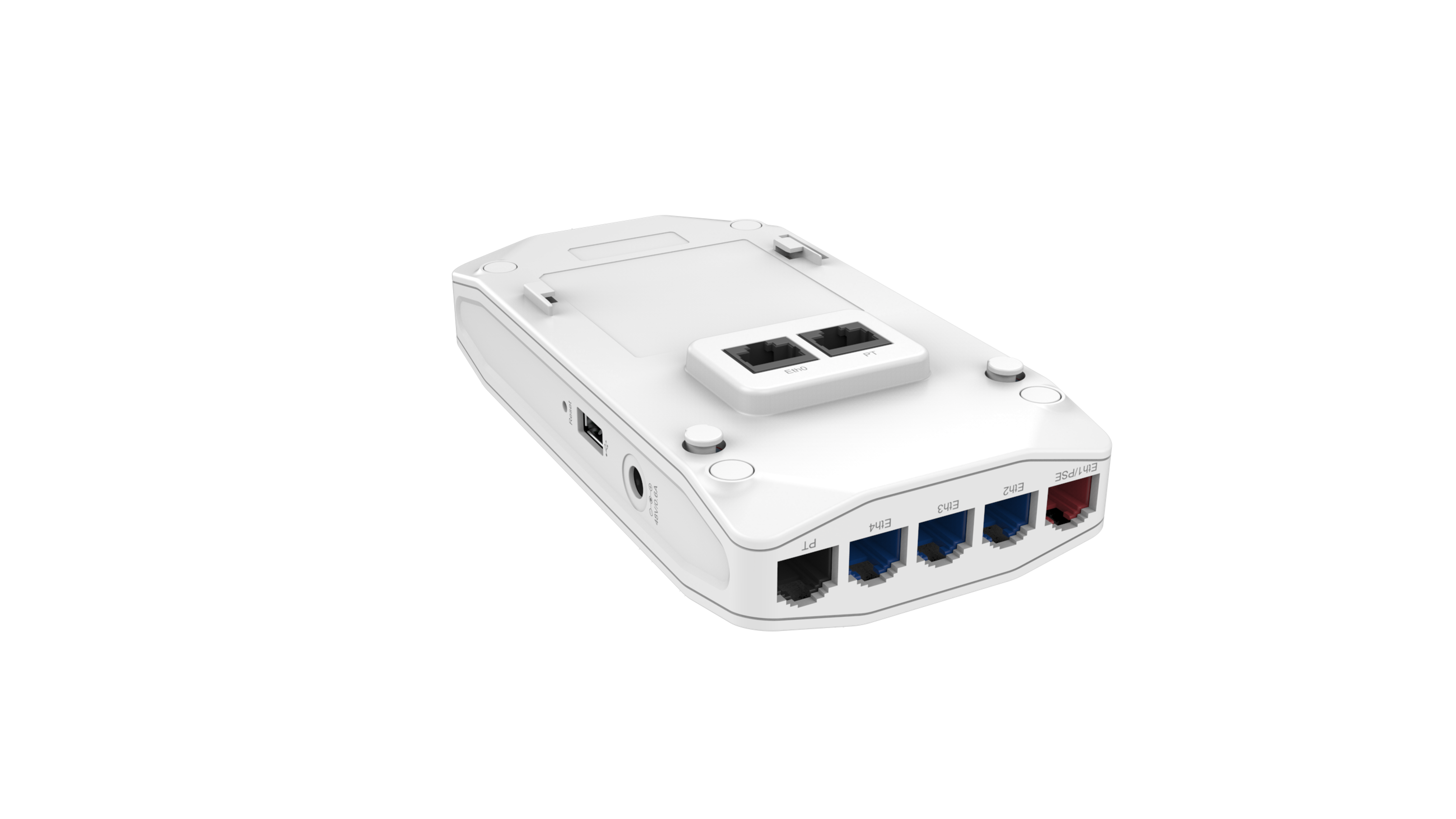

• Uplink: 1×10/100/1000BASE-T autosensing (RJ-45) port, Power over Ethernet (PoE) 802.3at/af compliant

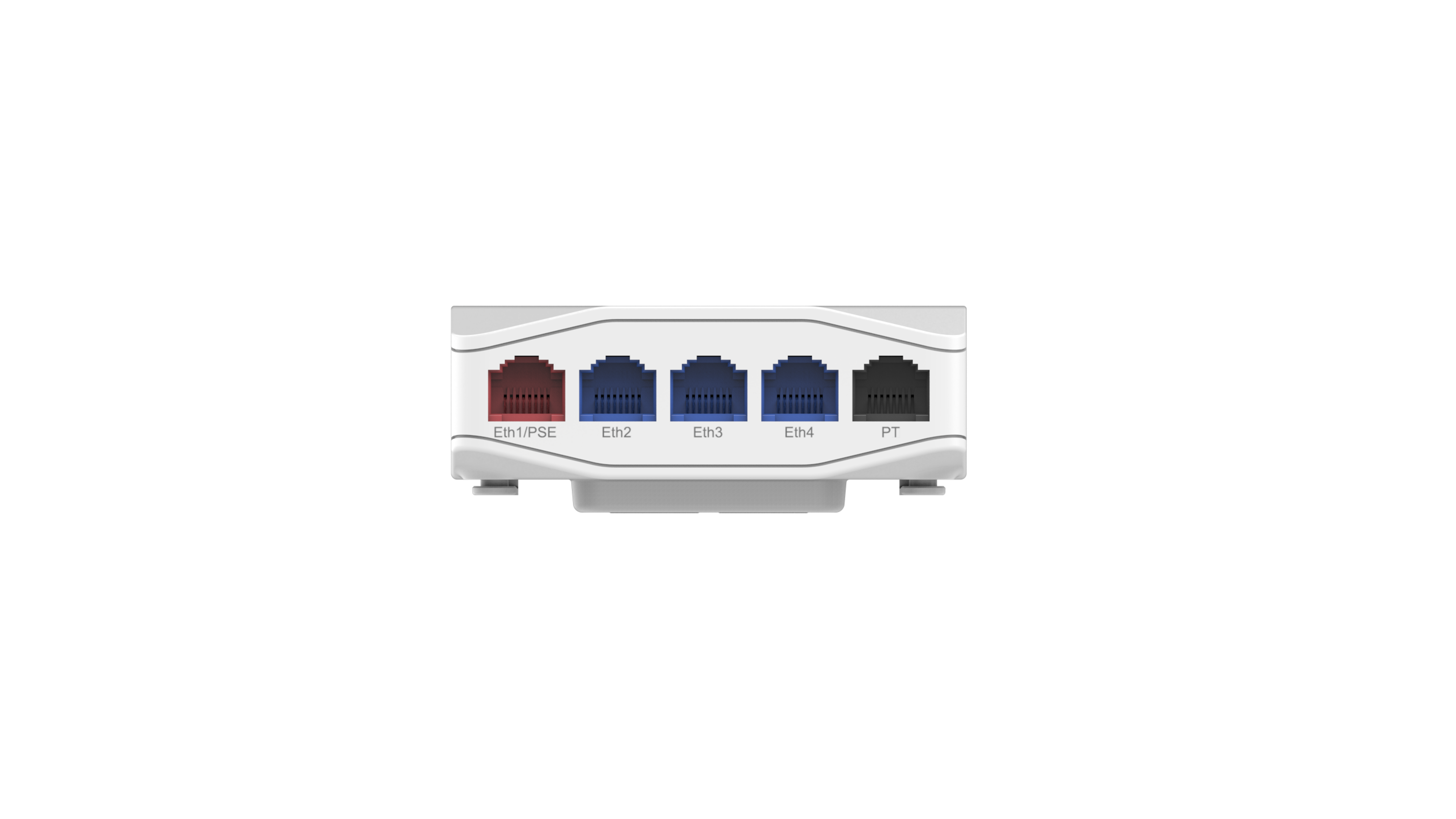

• Downlink: 4×10/100/1000BASE-T autosensing (RJ-45) port, Eth1 support up to 802.3af PSE.

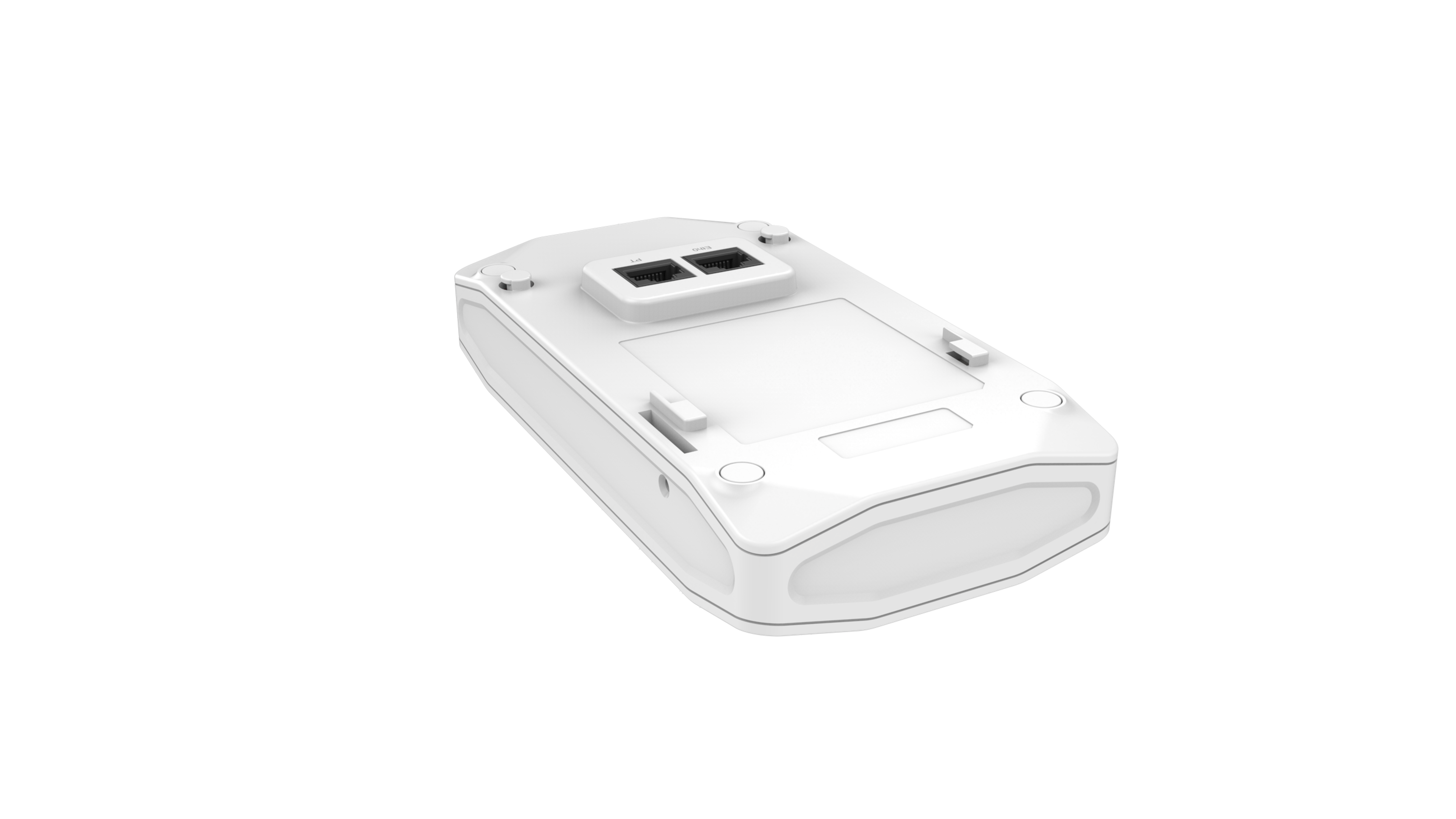

• Passive pass-through: one pair, back and bottom
• 1× USB 2.0 Type A(5V,500mA)
• Reset button: Factory reset. Press reset button for 5s, AP LEDs will quickly flash for 3s, then AP will restart and restore factory configurations.

Visual Indicators (Two LEDs)

• SYS (tri color)
• RED flashing: system abnormal, link down
• RED light: system startup
• RED and BLUE rotate flashing: OS upgrading
• BLUE light: system running, dual bands working
• GREEN flashing: no SSID created
• GREEN light: system running, single band working
• RED, BLUE and GREEN rotate flashing: system running, use for location of an AP
• PSE (single color, green)
• ON: PSE enabled
• OFF: PSE disabled, default.

Antenna

• AP311H: Built-in 2×2:2 @ 2.4GHz, 2x2:2 @ 5GHz antennas

¬ Integrated omni-directional

antennas for 4SS with peak antenna gain of 3.92dBi in 2.4GHz, 4.41dBi in 5GHz.

• Integrated BLE antenna with peak gain 3.85dBi

Receive sensitivity (per chain)

                2.4 GHz      5 GHz

1 Mb/s             -97

11 Mb/s            -89

6 Mb/s             -92          -93

54 Mb/s            -75          -76

HT20 (MCS0/8)     -92          -92

HT20 (MCS7/15)    -74          -75

HT40 (MCS0/8)     -90          -90

HT40 (MCS7/15)    -72          -72

VHT20 (MCS0)     -92          -92

VHT20 (MCS8)     -71          -71

VHT40 (MCS0)     -90          -90

VHT40 (MCS9)     -67          -67

VHT80 (MCS0)                  -87

VHT80 (MCS9)                  -63

HE20 (MCS0)      -93           -93

HE20 (MCS11)     -63           -63

HE40 (MCS0)      -90           -90

HE40 (MCS11)     -61           -61

HE80 (MCS0)                   -87

HE80 (MCS11)                  -57

Maximum Transmit power (per chain) ± 2dBm

                  2.4 GHz      5 GHz

1Mb/s            18 dBm

11Mb/s           18 dBm

6Mb/s            18 dBm      18 dBm

54Mb/s           16 dBm      16 dBm

HT20 (MCS0/8)    18 dBm      18 dBm

HT20 (MCS7/15)   15 dBm      14 dBm

HT40 (MCS0/8)    18 dBm      18 dBm

HT40 (MCS7/15)   15 dBm      14 dBm

VHT20 (MCS0)    18 dBm      18 dBm

VHT20 (MCS8)    14 dBm      13 dBm

VHT40 (MCS0)    18 dBm      18 dBm

VHT40 (MCS9)    14 dBm      13 dBm

VHT80(MCS0)                 18 dBm VHT80 (MCS9)                 12 dBm

HE20 (MCS0)     18dBm       18 dBm

HE20 (MCS11)    13dBm       12 dBm

HE40 (MCS0)     18dBm       18 dBm

HE40 (MCS11)    13dBm       12 dBm

HE80 (MCS0)                  18 dBm

HE80 (MCS11)                 12 dBm

Note: Maximum capability of the hardware provided (excluding antenna gain). Maximums transmit power is limited by local regulatory settings.

Power

• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Maximum (worst case) power consumption:
• 25W (IEEE 802.3at PoE or DC)
• Direct DC source: 48V DC nominal, +/- 5%
• Power over Ethernet (PoE): IEEE 802.3at/af source
• 25W (input IEEE 802.3at PoE, Eth1 support up to 802.3af 12W PSE)
• 7W (input IEEE 802.3af PoE), Eth1 PSE disabled.

Mounting

• The AP ships with wall mount kits.

Environmental

• Operating temperature: 0°C to 45°C (+32°F to +113°F)
• Humidity: 5% to 95% non-condensing
• Storage and transportation Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/weight

• Single AP excluding packing box and accessories

¬ 86mm (W) x 29mm (D) x 162.5mm (H) -3.39” (W) x 1.14” (D) x 6.40” (H) / 334g / 0.74lb

• Single AP including packing box and accessories

¬ 115 mm (W) x 54 mm (D) x 182 mm (H) -4.52” (W) x 2.13” (D) x 7.17”(H)/ 519g / 1.14lb

Reliability

MTBF: 1,321,181h (150.82 years) at +25ºC operating temperature

Capacity

• Up to 8 SSID/Radio (16 SSID/AP), hardware ready for 16 SSID per radio (32 SSID/AP)
• Support for up to 1024 associated client devices
• Up to 8k APs managed by HAN Networking Management Platform
• Up to 255 APs per Web managed (HTTP/HTTPS) cluster

Software feature

• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with CSP
• Captive Portal
• Internal User Database
• Radius Client
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• Whitelist/blacklist
• Zero-touch provisioning (ZTP) with support of third-party partner
• NTP server client
• ACL
• Wireless MESH P2P/P2MP
• Rogue AP location and containment
• Wireless Attack Detection
• System log report
• SNMP Trap Notification with CSP/ESP
• Floor plan and heat map with CSP/ESP

Note: some features are limited by local regulatory settings

Authentication & Encryption

• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3(WPA3 -Enterprise with CNSA Option, Personal (SAE), Enhanced Open (OWE))
• 802.1X
• Portal page authentication
• Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

IEEE standard

• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.11k Radio Resource Management
• IEEE 802.11v BSS Transition Management
• IEEE 802.11r Fast roaming

Regulatory & certification

• CB Scheme Safety, cTUVus
• CE Marked
• FCC
• EN 60601-1-1 & EN 60601-1-2
• RoHS, REACH, WEEE
• Wi-Fi Alliance (WFA) certified Wi-Fi 6
• Wi-Fi Alliance (WFA) certified Passpoint R3
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• EN 55035
• EN 50385
• IEC/EN 60950 and 62368
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
• SRRC
