Radio specification

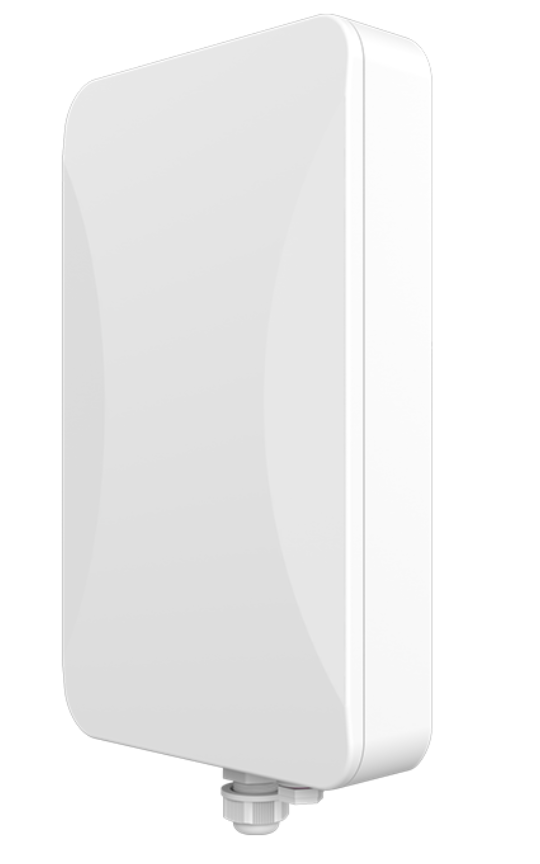

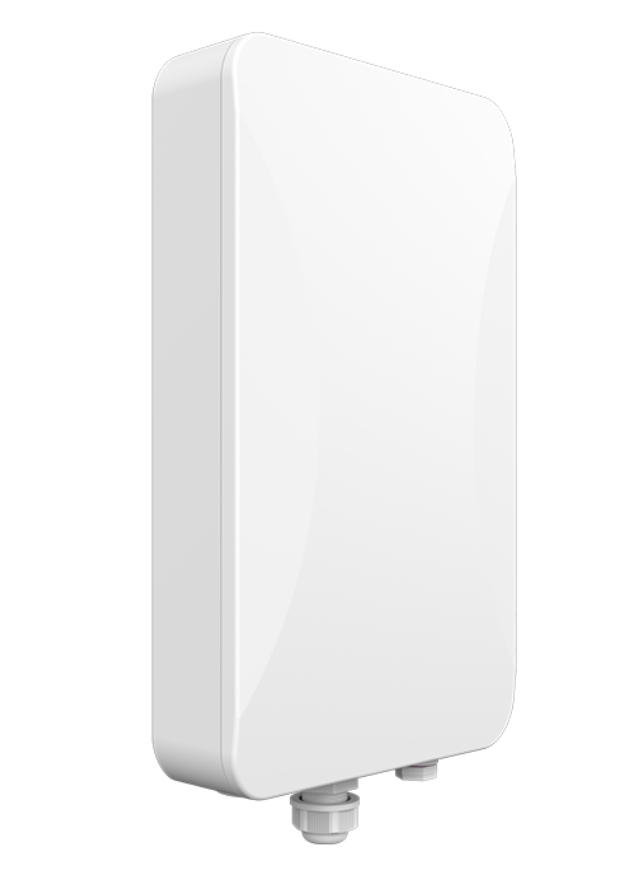

• AP type: Outdoor, dual radio, 5 GHz 802.11ax 2x2:2 and 2.4 GHz 802.11ax 2x2:2
• 5 GHz: Two spatial streams for up to 2.4 Gb/s wireless data rate with HE160
• 2.4 GHz: Two spatial streams for up to 574 Mb/s wireless data rate with HE40
• Supported frequency bands (country-specific restrictions apply):

¬ 2.400 to 2.4835 GHz

¬ 5.150 to 5.250 GHz

¬ 5.250 to 5.350 GHz

¬ 5.470 to 5.725 GHz

¬ 5.725 to 5.850 GHz

• Available channels: Dependent on configured regulatory domain
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Supported channels:

¬ 20-MHz

¬ 40-MHz

¬ 80-MHz

¬ 160-MHz

• Transmit beamforming (TxBF) for increased signal reliability and range
• Supported data rates (Mbps):

¬ 802.11b: 1, 2, 5.5, 11

¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

¬ 802.11n:6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

¬ 802.11ac(5GHz): 6.5 to 866.7 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80), 1083 with 1024-QAM

¬ 802.11ax(2.4GHz): 3.6 to 573.5 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE40)

¬ 802.11ax(5GHz): 3.6 to 2402 (MCS0 to MCS11, NSS=1 to 2, HE20 to HE160)

• Supported modulation types:

¬ 802.11b: BPSK, QPSK, CCK

¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

¬ 802.11ax: BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

• Advanced Cellular Coexistence (ACC)

¬ Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

Interfaces

• 1× 10/100/1000 port, Power over Ethernet (PoE) 802.3at compliant
• Reset button: Factory reset.

Visual Indicators (Tri-color LED)

• For system and radio status
• PWR: ON, power up
• SYS: ON, running; FLASHING, OS upgrading
• WAN: ON, WAN connection established
• 4G: ON, 2.4GHz SSID created and working
• 5G: ON, 5GHz SSID created and working

Antenna

¬ Integrated dual band omni-directional antennas for 2x2 MIMO with peak antenna gain of 6dBi in 2.4GHz and 5dBi in 6GHz.

Receiver sensitivity (per chain)

          2.4 GHz       5 GHz

          -96 dBm      -91 dBm

Maximum Transmit power (per chain)

           2.4 GHz      5 GHz

           22 dBm      22 dBm

Power

• Supports Power over Ethernet (PoE)
• Maximum (worst case) power consumption:

¬ 16W

Environmental

• Operating temperature: -20°C to 55°C (-4°F to +131°F)
• Humidity: 5% to 95% non-condensing
• Storage and transportation Temperature: -40°C to +75°C (-40°F to +167°F)
• IP67 Protection

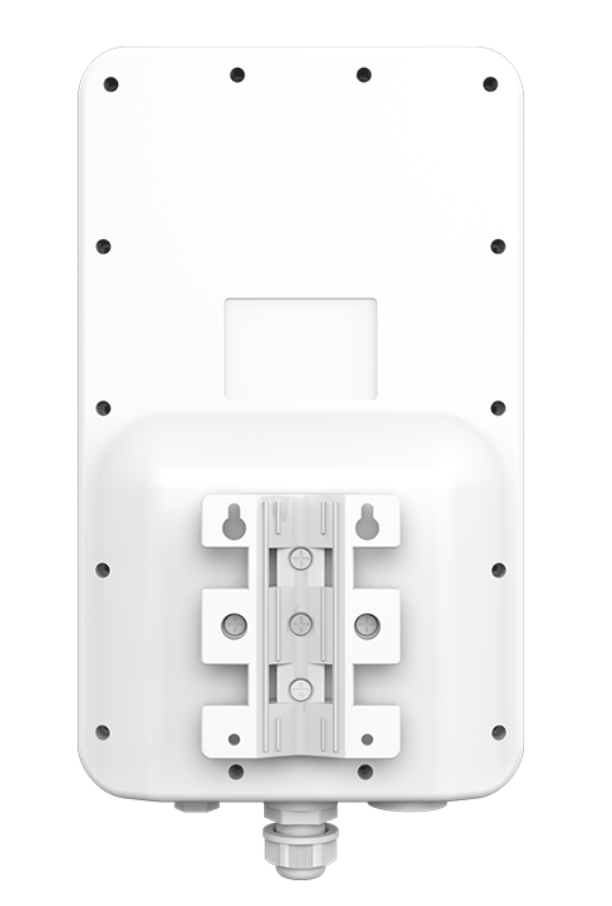

Dimensions/weight

• Single AP excluding packing box and accessories

¬ 180mm (W) x 298mm (D) x 87mm (H) / 1200g

Reliability

MTBF: 1,003,257 hours (114.5years) at +25ºC operating temperature

Software feature

• Up to 8 SSID/Radio (16 SSID/AP)
• Up to 255 APs per Web managed (HTTP/HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with CSP/ESP
• Captive Portal
• Internal User Database
• Radius Client
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• Allowlist/Blocklist
• Zero-touch provisioning (ZTP) with support of third-party partner
• NTP client
• ACL
• System log report
• Wireless Attack Detection

Note: some features are limited by local regulatory settings

Authentication & Encryption

• 802.11i, Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
• 802.1X
• Portal page authentication
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

IEEE standard

• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11e WMM, U-APSD
• IEEE 802.11h, 802.11i, 802.11e QoS
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast roaming

Regulatory & certification

• CE
• SRRC
